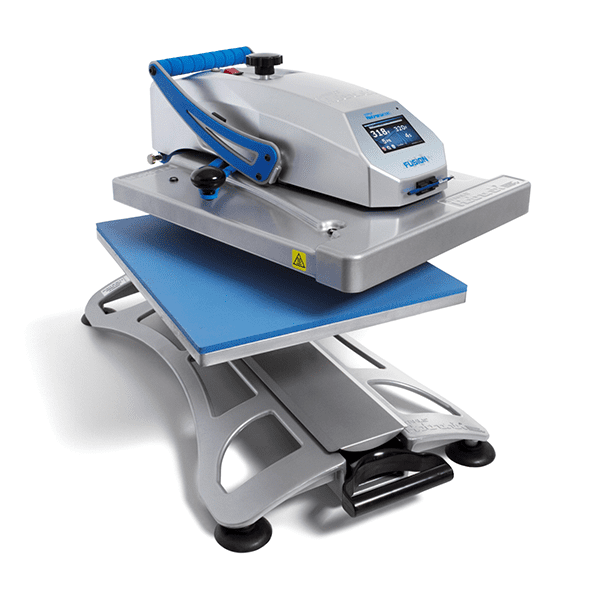

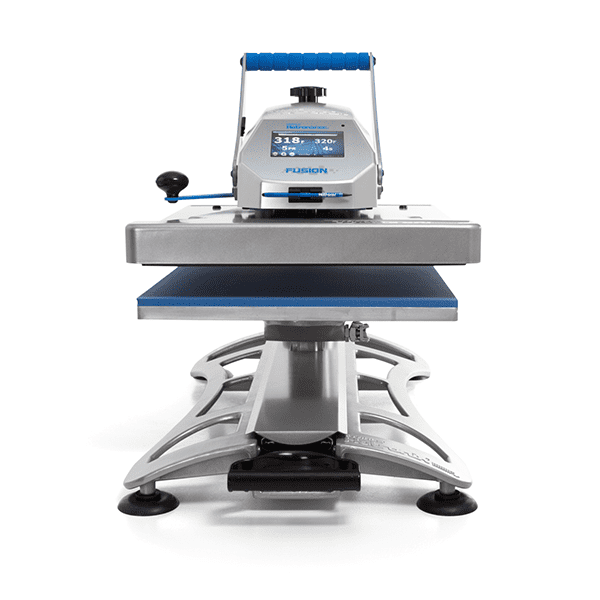

Fusion IQ® (Heat Presses)
The smartest heat press in the industry.
The Fusion IQ® Heat Press is designed so your business can work smarter, not harder. This digital heat transfer machine has stored application instructions, an ultra-responsive interface, and self-diagnostic capabilities, allowing you to grow and improve your custom apparel business. The high-resolution touch screen controller allows you to easily modify or save any desired settings.
Innovation meets application with IQ® Heat Presses. Register your Fusion IQ® Heat Press with Hotronix® to access the Online Portal where you can manage users, generate usage reports, and troubleshoot technical issues.
- Made in the USA

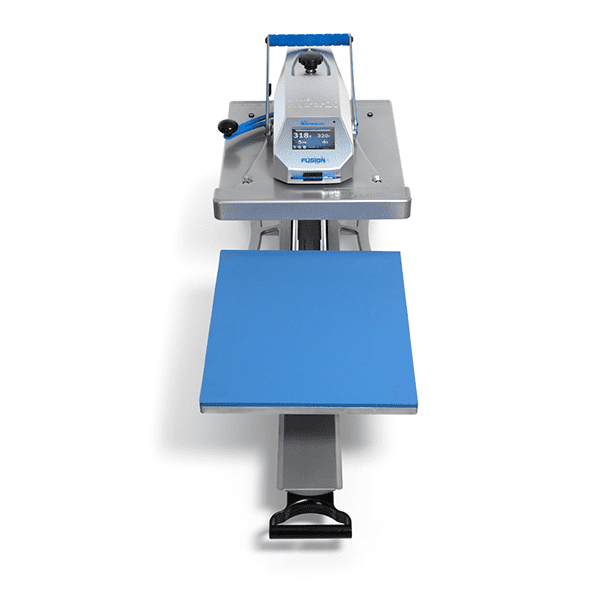

- Patented dual function: Operates as a swing or draw press for a heat-free workspace
- Touch screen technology lets you easily set time, temperature, and pressure
- Unlimited preset programs
- Live digital time, temperature, and pressure readout
- Compatible with all Quick Change Platens
Download Platen Compatibility Guide
*Item ships separately, cannot be combined with other products. UPS Freight quote will be provided after order is placed.
Product Options | Price Calculator
Features:
- Online access to reporting, including total impressions, active/idle time, and average cycle time.
- Self-diagnostics help with troubleshooting and maintenance.
- 16" x 20" platen
- Threadability™ makes it easy to load garments onto the lower platen and print front, back, and sides.
- Quick Change lower platens available for printing smaller items, hats, shoes, etc.
- Multiple time settings.
- Auto on/off setting.
- Multi-level password settings.
- Energy-saving 4 hour sleep mode.
- Production cycle counter.
- Available in eight languages.
- 3/4" thick non-stick coated upper platen.
- Set to F° or C°
- Easy-to-install interchangeable platens.
- Live digital time, temperature, and pressure readout.
- Temperature range 32°F - 430°F
- Certified by SGS to UL standards.
- CE/RoHS approved.
- Electrical Options: 120v; 15 amps; 1800w / 240 v; 7.5 amps; 1800 w (Call 800-234-4890 to order)
- Must have designated circuit breaker
- Cast-aluminum frame.
Technical Specifications:
- Made In The USA
- Cast-in tubular heating
- Powder coated finish
- UL/ULC/CE
- Actual Weight: 137 lbs.
- Ship Weight: 150 lbs.

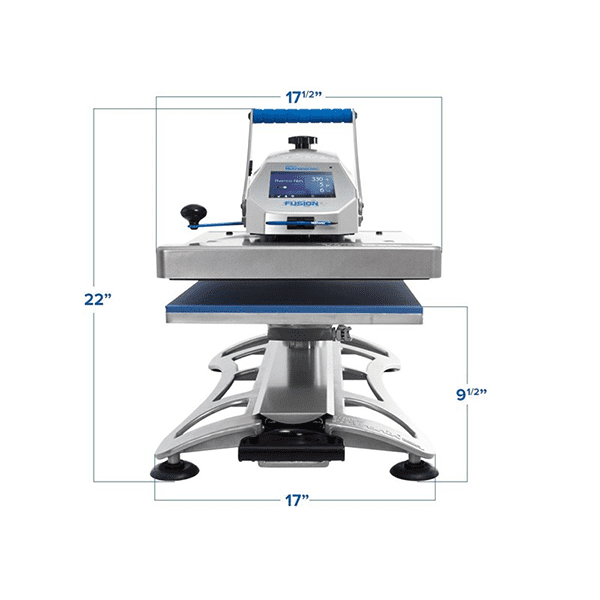

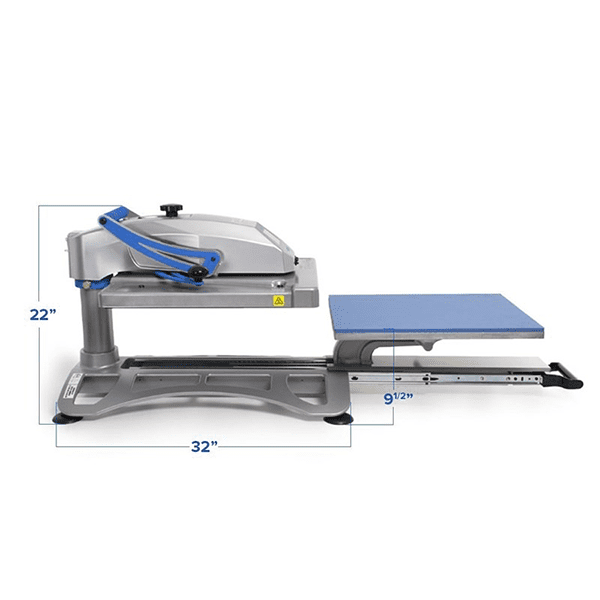

- Ship dimensions
- 37" x 25" x 24"
- Warranty:
- Heating Element - Lifetime
- Framework - 5 years
- Circuit Board - 2 years
- Parts & Labor - 1 year
- Hotronix® Tech Support & Replacement Parts
FAQs
The amount of volts and watts needed for Hotronix heat presses can vary, depending on size. Please check the technical specifications for each heat press.
In general it is recommended to have your heat press plugged into a dedicated 20-amp outlet.
