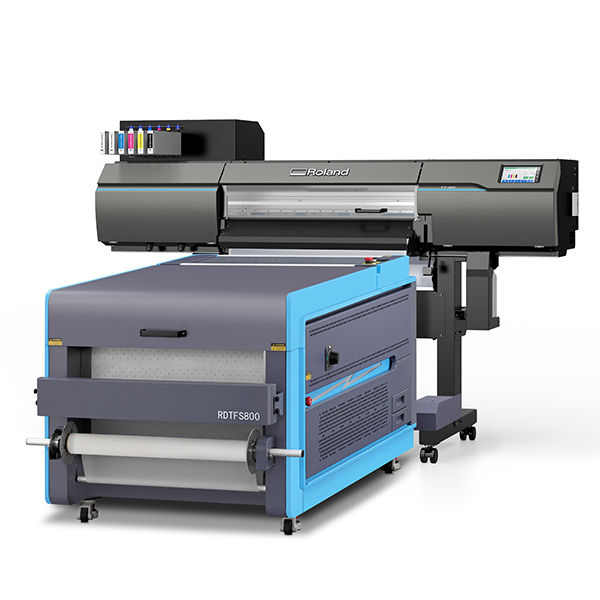

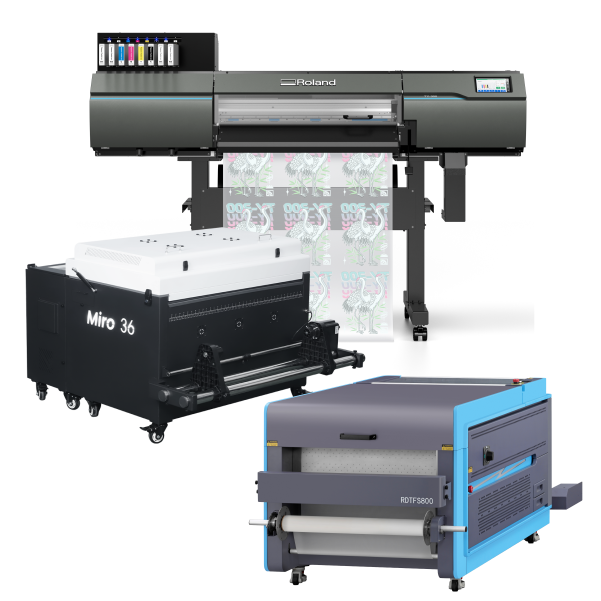

Roland TY-300i DTF Bundle (DTF Equipment)
Roland TY-300i + Shaker/Dryer
Get this all-in-one DTF Bundle which combines our top quality Roland TY-300i DTF Printer and your choice of Shaker / Dryer.
Roland TY-300i DTF Printer
Whether you will be creating and selling standalone transfers, or producing your own unique finished apparel, you want your work to look exceptional. The TY-300i helps you achieve this with richer color, stronger detail, and more consistent results than other DTF systems. Faster output and expanded white capacity keep production moving, even on demanding days.
RDTFS800 Shaker / Dryer
This DTF shaker oven is specifically optimized for the TY-300i, featuring a dedicated powder that delivers the highest image quality at the highest productivity. Additionally, the unit includes an attachment that connects the printer to this unit to minimize skew for more precise and efficient operation. Built-In fume extraction system to save space while providing user safety requirements. 1 year warranty.
Miro 36 Shaker / Dryer
A 36-inch, fully-automated powder station and dryer, the Miro 36 pairs perfectly with the Roland TY-300i and consumes less power than comparable shaker / dryer units. With its compact, modular build, the Miro 36 fits through most standard doorways and can be set up easily. It features a built-in air purification system for optimum workplace safety, advanced workflow-enhancing features, intuitive touch screen controls, and more. 1 year warranty.
Contact Us For Details
Product Options | Price Calculator
Roland TY-300i Features
- Create bold, vivid prints with ultra-fine detail for transfer to almost any type of fabric.
- Exclusive DTF inks optimize print performance and are Oeko-Tex Eco Passport Certified.
- True Rich Color 3 presets ensure color vibrancy, neutral grays, smooth gradations, and natural skin tones.
- Reliable, precise, and efficient for fast performance and minimal downtime.
- Stable, high-quality printing at speeds that are up to 45% faster than competitive models.
- Now with double white ink for faster output and expanded white capacity to keep production moving even on demanding days.
- Unmatched ease of use, automatic maintenance features, and low operating costs.
- Color LCD touch panel and included user-friendly RIP software make operation simple.
- Automatic printhead cleaning, advanced white ink circulation, and “DIY” part replacement for easy maintenance.
Specifications
| Printhead | Piezo ink-jet printhead | ||
| Print resolution | up to 1,200 dpi | ||
| Print speed (4 color) | Print Quality: High White > CMYK: 88.9 ft2/h (8.26 m2/h) | Print Quality: Standard White > CMYK: 117.33 ft2/h (10.90 m2/h) | Print Quality: High Speed White > CMYK: 188.11 ft2/h (17.48 m2/h) |
| Maximum Print Width | 28.9 in (736 mm) | ||
| Maximum Media Width | 30 in (762 mm) | ||
| Maximum Media Thickness | 39.3 mil (1.0 mm) | ||
| Maximum Media Weight | 66.1 lb. (30 kg) | ||
| Ink Type | S-PG2 Ink Colors (C,M,Y,K,W) | ||
| Interface | Ethernet (100BASE-TX/1000BASE-T, automatic switching) | ||
| Power Supply | 100-120 / 220-240 Vac 50/60 Hz 6.4/3.0 A | ||
| Power Consumption | During operation: Approx. 840 W | Sleep mode: Approx. 70 W | |
| Operational Environment | During operation: Temperature: 68 to 82.4°F (20 to 28°C)
| Sleep mode: Temperature: 41 to 104°F (5 to 40 °C)
| |
| Dimensions (W × D × H) | 83.74 in. x 45.28 in. x 32.27 in.
| ||
| Weight | 300 lbs. (136kg) | ||
| Included Items | Dedicated stand, Power cord, Media holders, Separating knife, Replacement blade, Cleaning liquid, Drain bottle, User’s Manual, Software, (VersaWorks, Roland DG Connect), etc. | ||
RDTFS800 Features
- Specifically optimized for use with the Roland TY-300i printer.
- Built in fume extraction system to save space.
- Included alignment bracket to fit TY-300i frame for straight feeding into the shaker/dryer.
- Dual bottom trays for catching excess powder to be recycled in the hopper.
- Pre-heater platen helps begin ink curing process - exit fans help cool the transfers before being wound on the media take-up roll.
Specifications
| Operational Environment | Temperature: 64-86°F (18 - 30°C) | Recommended: 75°F (24°C)
|
| Power Consumption (Operating) | 4000 W |
| Power Supply | AC 200-240v @ 50/60Hz | Current = 16A x 1 (single phase) |
| Dimensions (L × W × H) | 82.3 in. x 44 in. x 40.4 in. (2090 x 1,120 x 1026 mm) |
| Weight | 948 lbs. (430kg) |
| Install Requirements |
|
Miro 36 Features
- Patented, built-in air purification system eliminates smoke and fumes.
- Compact, modular two-piece build for easy installation and setup.
- Curved heating platen ensures the film fits precisely for optimal printing.
- Intuitive touch screen controls for increased ease of use and convenience.
- Low running costs - at 110V and 2.25KW, the Miro 36 is extremely energy efficient.
Specifications
| Max. Media Width | 36 in. |
| Product Dimensions | 74"W x 50.4"D x 35"H |
| Packaging Dimensions | 47.6"W x 47.6"D x 42.3"H |
| Weight (shaker only) | 595.2 lbs. |
| Power | 110V, 2.25KW, 20.45A |
| Install Requirements |
|
