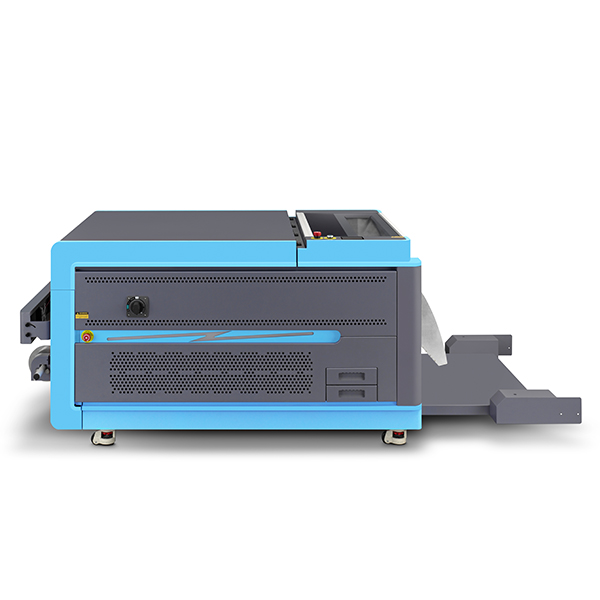

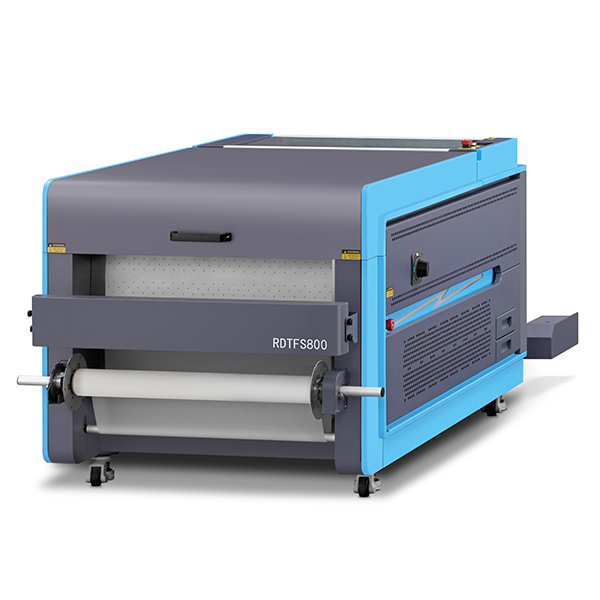

RDTFS800 Shaker & Dryer (DTF Equipment)
Exclusive DTF Shaker/Dryer for Roland's TY-300
This DTF shaker oven is specifically optimized for the TY-300, featuring a dedicated powder that delivers the highest image quality at the highest productivity. Additionally, the unit includes an attachment that connects the printer to this unit to minimize skew for more precise and efficient operation. Built-In fume extraction system to save space while providing user safety requirements. 1 year warranty.
*Installation is only available in Oregon and Washington.
Contact Us For Details
Product Options | Price Calculator
Product Options | Price Calculator
RDTFS800 Features
- Specifically optimized for use with the Roland TY-300 printer.
- Built in fume extraction system to save space.
- Included alignment bracket to fit TY-300 frame for straight feeding into the shaker/dryer.
- Dual bottom trays for catching excess powder to be recylced in the hopper.
- Pre-heater platen helps begin ink curing process - exit fans help cool the transfers before being wound on the media take-up roll.
Specifications
| Operational Environment | Temperature: 64-86°F (18 - 30°C) | Recommended: 75°F (24°C)
|
| Power Consumption (Operating) | 4000 W |
| Power Supply | AC 200-240v @ 50/60Hz | Current = 16A x 1 (single phase) |
| Dimensions (L × W × H) | 82.3 in. x 44 in. x 40.4 in. (2090 x 1,120 x 1026 mm) |
| Weight | 948 lbs. (430kg) |
| Install Requirements |
|
